Crusher X-3A
FEATURES
- Slim-line design
- Less weight by compact design
- Large jaw opening (354mm)
- Reliable and efficient
- Cylinder with integrated booster.
- New tooth design with carbide sprayed coating.
- Arm/Dipper stick mounted
- Piston rod and hoses fully protected inside the crushers frame.
- Fast opening/closing time 2.3 sec, in unloaded condition, produces 26 cycles per minute.
- X-3A has standard 360° mechanical rotation
- X-3AR with hydraulic rotation available on request
- Maintenance friendly.
- Reinforced steel cutters are standard.
- Low oil flow, ensures other functions of the excavator are not influenced.
- No additional pressure reduction is required in the hydraulic system
Specification
| Model | X-3A |
| Excavator weight (t) | 2.5 – 4.0 |
| Weight (kg) | 280 (X-3AR: 313) |
| Max. jaw opening (mm) | 354 |
| Working pressure (MPa) | 21 |
| Oil flow (l/min) | 30 – 60 |
| Rotation pressure (MPa) | X-3AR: – 32 |
| Rotation oil flow (l/min) | X-3AR: 6 – 15 |
| Max. force (A) (kN) | 320 |
| Max. force (B) (kN) | 480 |
| Max. force (C) (kN) | 920 |
High Speed
| Opening time (sec.) | 0.6 |
| Closing time (sec.) | 1.2 |
| Total cycle time (sec.) | 1.8 |
| Number of cycles (sec.) | 33 |
| Oil flow (l/min) | 60 |

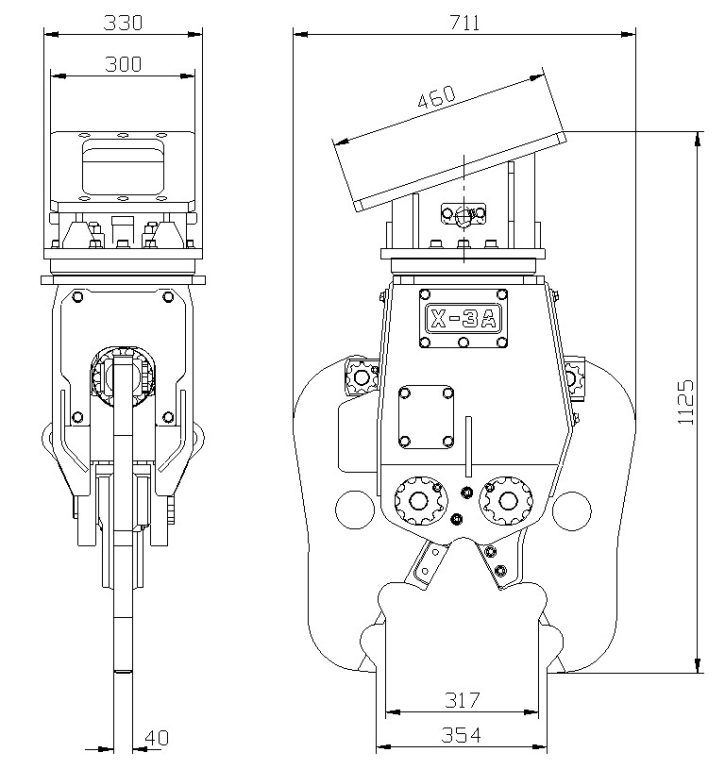

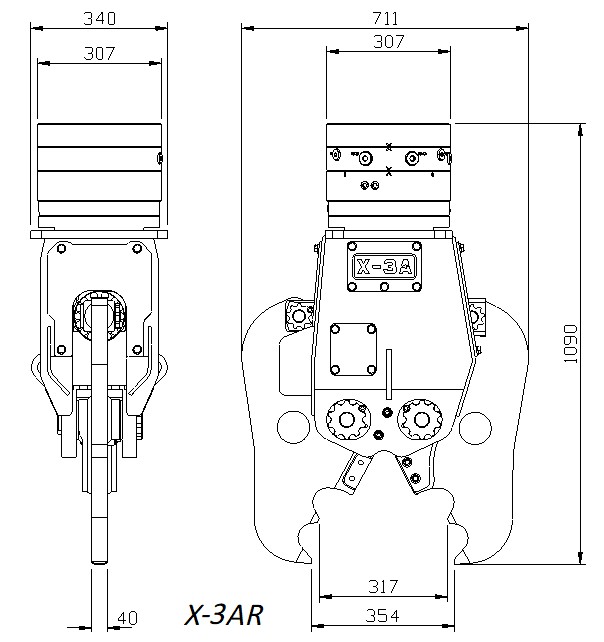

Drawing
