Demolition grab DG-4

Demolition grab DG-4

Demolition, recycling, loading…

Features

  • Fully protected hydraulic components
  • Interchangeable and reversible arm cutters (HB500)
  • Frame and arms made of high tension steel (Hardox)
  • 360° hydraulic rotation, no drain line required
  • Easy maintenance
  • Easy to grease in one position
  • Low cost, high efficiency
  • Low weight, high durability
  • Special requests can be discussed

Specification

Model NPK DG-4
Excavator weight (ton) 2,5 - 4,0
Weight (kg) 172
Capacity (L) 90
Open/close – Working pressure (MPa) 18 - 26
Open/close – Oil flow (l/min) 15 - 35
Rotation – Working pressure (MPa) 18 - 26
Rotation – Oil flow (l/min) 12 - 22
Closing force (kN) 15
Jaw – opening (mm) 1145
Width (mm) 450

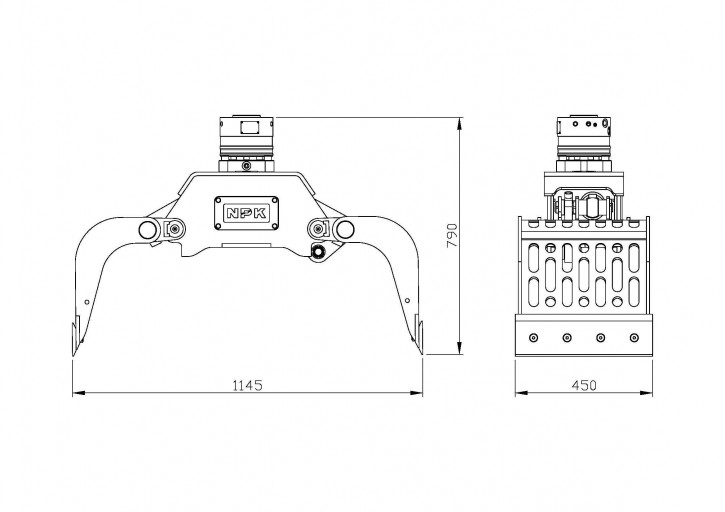

Drawing

Attachments

Demolition_grabs.pdf (942.99 KB)

Abbruchgreifer.pdf (944.06 KB)

Grappins_de_démalition.pdf (424.90 KB)
