Crusher SV700R
NPK®’s SV-Series, originally designed for the Japanese market, to demolish earthquake proof buildings, is now well established in the European demolition industry as well.
The unique two (2) booster system on the SV-Crushers makes them the most powerful machines in their weight classes. The powerful crushing forces increase when jaws meet resistance as the booster converts flow to pressure. Competitive cylinder systems need larger cylinders to equal the force developed by the more compact NPK® booster system.
FEATURES
- Two cylinders with their own booster
- High crushing force with larger jaw opening
- High oil flow allowed: High closing and opening speed
- Better weight balance with current excavator models
- Excellent stability, even for high reach demolition
Specification
| Model | SV700R |
| Excavator weight (t) | 60 - 100 |
| Weight (kg) | 7440 |
| Max. jaw opening (mm) | 2000 |
| Working pressure (MPa) | 28 |
| Oil flow (l/min) | 200 - 700 |
| Rotation pressure (MPa) | 14 |
| Rotation oil flow (l/min) | 20 - 30 |
| Max. force (A) (kN) | 2560 |
| Max. force (B) (kN) | 4330 |
| Max. force (C) (kN) | 7800 |
High Speed
| Opening time (sec.) | 1.7 |
| Closing time (sec.) | 3.7 |
| Total cycle time (sec.) | 5.4 |
| Number of cycles (sec.) | 11 |
| Oil flow (l/min) | 700 |

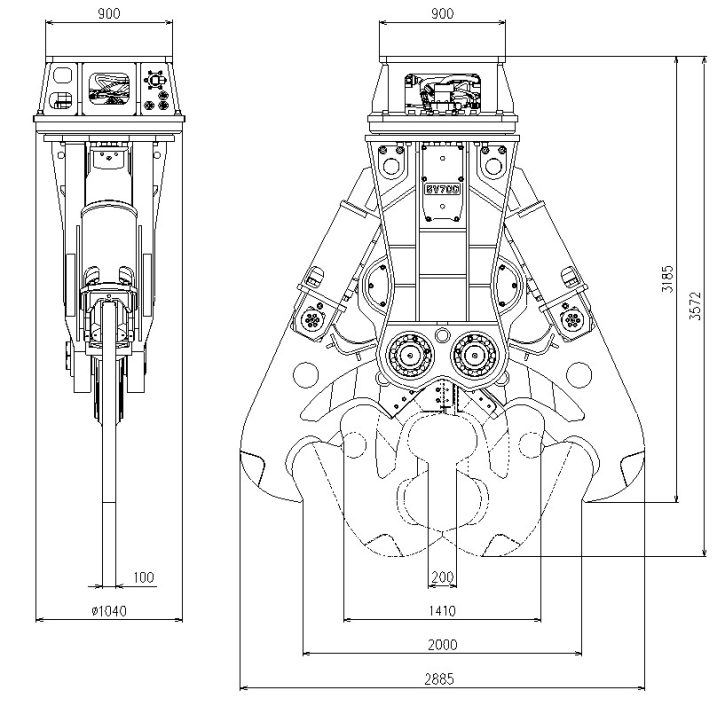

Drawing
