Crusher SV-24XR
FEATURES
- Two cylinders with boosters.
- High power – low mass
- Extremely powerfull in its class
- Good visibility
- Less power loss during closing
REPLACEABLE TEETH (OPTIONAL)
- The concrete crushers SV-24 can be equipped with replaceable teeth, leading to easier replacement.The crusher can remain on site, while the teeth are changed or removed for refurbishment. Down time is therefore kept to an absolute minimum, greatly enhancing production.
-
- Replaceable tooth
Specification
| Model | SV-24XR |
| Excavator weight (t) | 19 – 27 |
| Weight (kg) | 2550 |
| Max. jaw opening (mm) | 1100 |
| Working pressure (MPa) | 28 |
| Oil flow (l/min) | 100 – 200 |
| Rotation pressure (MPa) | 14 |
| Rotation oil flow (l/min) | 10 – 15 |
| Max. force (A) (kN) | 1100 |
| Max. force (B) (kN) | 1620 |
| Max. force (C) (kN) | 3650 |
High Speed
| Opening time (sec.) | 2.2 |
| Closing time (sec.) | 4.0 |
| Total cycle time (sec.) | 6.2 |
| Number of cycles (sec.) | 10 |
| Oil flow (l/min) | 200 |

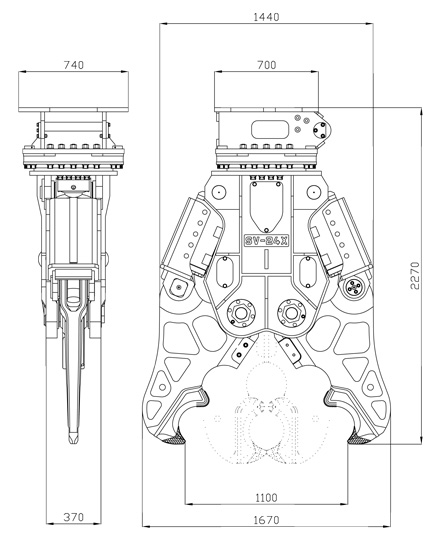

Drawing
Attachments
Concrete_crusher.pdf (917.45 KB)
Betonbeisser.pdf (955.36 KB)
Cisailles_a_béton.pdf (927.62 KB)
