Crusher S-42XCR

Crusher S-42XCR

More power – more production

Features

  • Only NPK® offers an exclusive integrated booster system that automatically activates when the jaws meet resistance.
  • C-type arms are providing maximum crushing force.
  • Low weight, long reach.
  • Large jaw opening (1.5 m)
  • Arm/Dipperstick mounted.
  • Piston rod and hoses fully protected inside the crushers frame.
  • Slim-line design.
  • Fast opening/closing times starting from 7.4 secs, in unloaded condition, produces 8 cycles per minute.
  • Standard 360º hydraulic rotation.
  • Maintenance friendly.
  • Reinforced steel cutters are standard.
  • Low oil flow, ensures other functions of the excavator are not influenced.
  • Excellent stability even for high-lift demolition.
  • Reliable and efficient.
  • No additional pressure reduction is required in the hydraulic system.

Specification

Model S-42XCR
Excavator weight (t) 39 – 48
Weight (kg) 4550
Max. jaw opening (mm) 1500
Working pressure (MPa) 25
Oil flow (l/min) 175 – 275
Rotation pressure (MPa) 14
Rotation oil flow (l/min) 20 – 30
Max. force (A) (kN) 1520
Max. force (B) (kN) 2470
Max. force (C) (kN) 4200

High Speed

Opening time (sec.) 3.0
Closing time (sec.) 4.4
Total cycle time (sec.) 7.4
Number of cycles (sec.) 8
Oil flow (l/min) 275

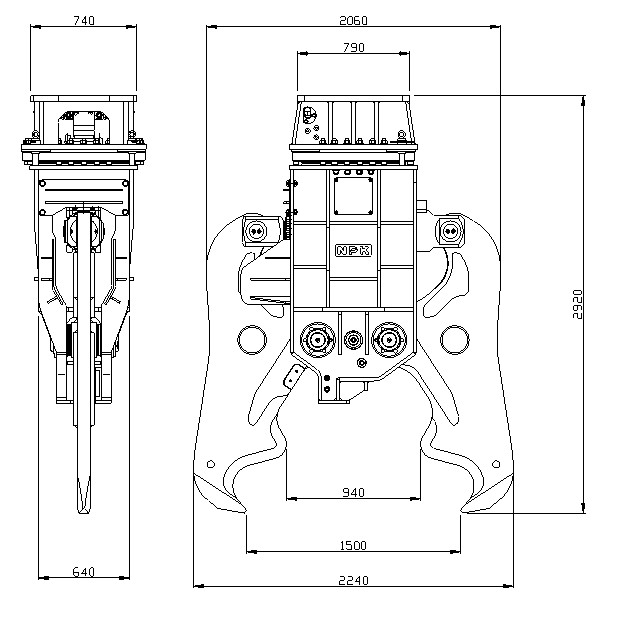

Drawing

Crusher S-42XCR
